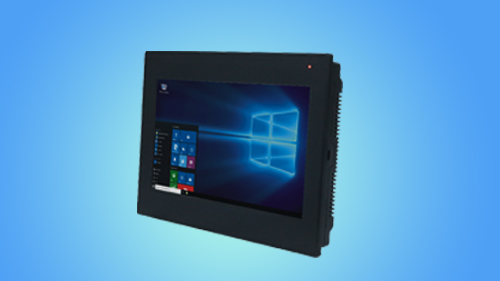

PC6101

Features

  • 10.1” WSVGA TFT LED Panel with Resistive Touchscreen
  • Embedded Intel® Atom™ E3845 Processor, Quad-core, 1.91 Ghz
  • Supports one internal SATA 2.5” SSD/HDD and 1 mSATA port
  • System memory up to 8 GB DDR3L 1066/1333 SDRAM
  • Fanless design
  • RS-232/422/485 selectable through BIOS
  • Microsoft ® Windows 7/8/10 support

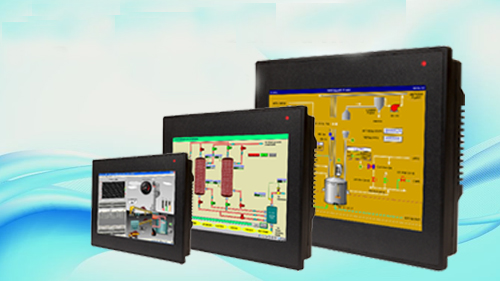

FlexiPanels® Basic HMI FP2 Series

Features

  • 4.3”and 7” TFT display options
  • Suitable for basic applications, trending, tasks, alarms, logging, IEC 61131-3 programing environment, native ladder logic support
  • Flash: 16MB
  • RAM: 16MB
  • Approvals: CE, UL Class I Div 2, IP65

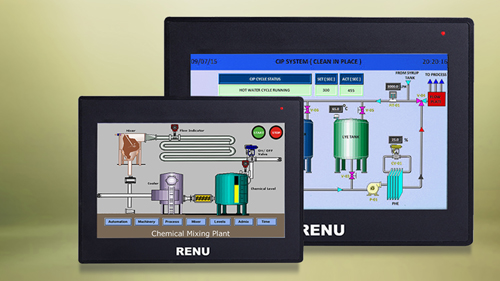

FP3 Series HMI with I/Os

Features

  • 4.3”, 7” and 10.2” TFT Color display with Optional Pluggable I/O modules
  • Easy to connect and configure
  • Wide range of ‘All-in-one’ (Digital and Analog) I/O modules
  • One USB Host port
  • One Ethernet port with multiple protocol support and FTP
  • One SD card slot for programming or data logging
  • Supports Horizontal and Vertical display orientation
  • High quality color display
  • Front Panel mounting with IP66 rating
  • Multilanguage support with true type Windows fonts
  • CE, UL Class I Div 2, RoHS

FlexiPanels WinCE Based PC3 Series

Features

  • 4.3”, 7” and 10.2” Color TFT display options Memory :
  • Up-to 128 MB RAM
  • Up-to 128 MB Flash
  • 2x serial communication ports
  • 1x Ethernet port (10/100 Mbps)
  • 1x SD card slot
  • 1x USB device port
  • 1x USB host port: Can be used for extended memory / USB keyboard / USB mouse
  • Support for 65K color
  • Front Panel mounting with IP66 rating
  • CE, UL Class I Div 2, RoHS

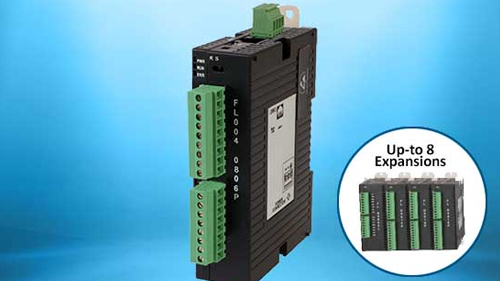

FlexiLogics® ECO PLC Series-FL4

Features

  • DIN rail / Back panel mounted slim PLC
  • Transistor or Relay outputs
  • 32 Bit RISC processor
  • DC inputs, DC Outputs
  • Support for High Speed Counters(8 Channels Up-to10KHz or 2 channels Up-to 25KHz) / Quaduature (any 2 pairs Up-to 10KHz or 4 pairs Up-to 5KHz) and Timers
  • High Speed 3 PWM output (Up-to 10 Khz)
  • High Speed 3 PWM output (Up-to 10 Khz)
  • Up-to 2 Serial Ports, 1 RS232, 1 RS485
  • 1 USB Device Port
  • DC powered units (24 V DC)
  • IEC61131-3 programming environment support
  • CE approved

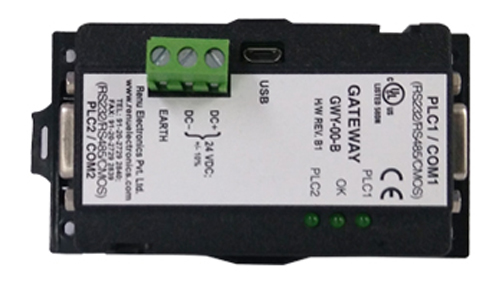

Gateway Series GWY-00

Features

  • DIN Rail or Panel Mounted compact Protocol Converter
  • DB9 Serial ports in any combination of RS232 / RS422 / 2 or 4 wire RS485 / CMOS
  • Connects PLC to PLC or PLC to a Modbus Network (as a Master or Slave)
  • Allows data sharing between PLC, Invertors, Controllers and other network devices
  • Common model for connecting different devices. Several PLC and Invertors supported
  • Direct connection to the Programming terminal saves additional hardware
  • Low power consumption of only 2.5 Watts
  • Common Programming software for the entire Gateway family.........FREE!!
  • CE with UL certification
