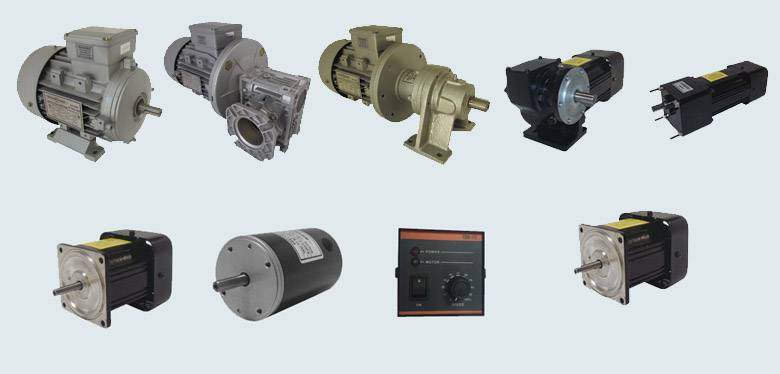

AC/DC MOTORS

MMMC Electric Co. Pvt. Ltd Dynaflux brand PMDC Motors from 20W to 2500W and also with Gearbox & DC Drive. Also we have AC Induction motor of 40W to 180W with & without Gearbox.
In Dynaflux AC Induction motors in Aluminum body from rating 0.25KW to 1.5KW with Gearbox and without gearbox at very reasonable price. This can be used for SPM’s and other applications.

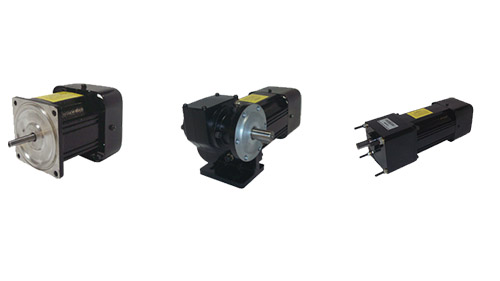

AC Induction Motors / Geared Motors

  • Power : 0.25 HP TO 2.0 HP
  • Speed : 1400 RPM TO 2800 RPM
  • WORM GEARED : 14 RPM TO 280 RPM
  • PLANETARY GEARED : 03 RPM TO 400RPM
  • VOLTAGE : 415 VAC 3PHASE/220VAC 3PHAS

FHP AC INDUCTION MOTORS

  • Power : 25 WATTS TO 180 WATTS
  • Speed : 1300 RPM
  • WORM GEARED : 25 RPM TO 125 RPM
  • INLINE GEARED : 07 RPM TO 260RPM
  • VOLTAGE : 230VAC 1PHASE /220VAC 3PHASE/415 3PHASE

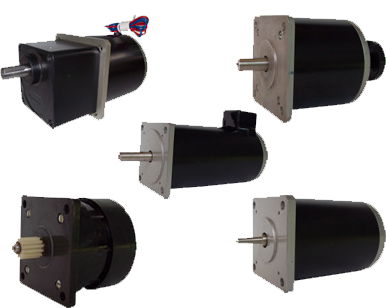

AC SYNCHRONOUS MOTORS

Special Features of A.C.Synchronous Motors

  • Bi-directional.
  • Instantaneous Start, Stop & Reverse.
  • Identical Starting & Running Currents.
  • Residual Torque always present.
  • No damage due to stalling.
  • Low speed of 60 RPM.

Application of A.C.Synchronous Motors

  • Actuators.
  • Remote Control of switches.
  • Winding Machines.
  • Machines Tool Applications.
  • Valve Controls.
  • Printing Machines.
  • Automatic Welding Equipment.
  • Medical Equipment.
  • Conveyor System.
  • Paper Feeder.

PMDC MOTORS / GEARED MOTORS

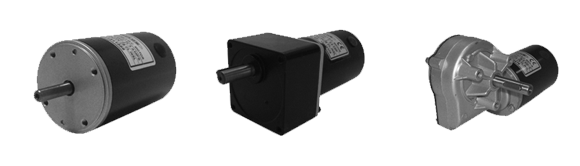

D63 Series

  • Power : 25 WATTS TO 60 WATTS.
  • Speeds : 1500 RPM TO 3000 RPM.
  • WORM GEARED : 35 RPM TO 160 RPM.
  • INLINE GEARED :10 RPM TO 300RPM

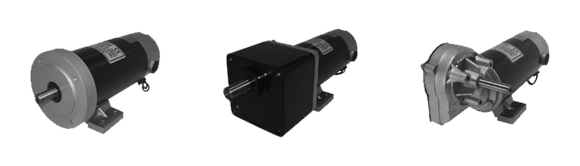

D75 Series

  • Power :40 WATTS TO 75 WATTS
  • Speeds :1500 RPM TO 3000 RPM
  • WORM GEARED :35 RPM TO 160 RPM
  • INLINE GEARED :10 RPM TO 300RPM

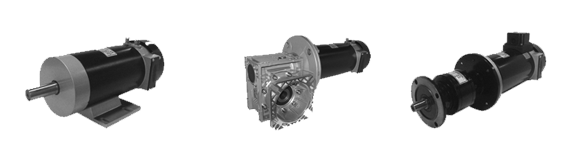

D127 Series

  • Power :746 WATTS TO 1120 WATTS
  • Speeds :1000 RPM TO 3000 RPM
  • WORM GEARED :10 RPM TO 300 RPM
  • PLANETARYGEARED :10 RPM TO 400RPM
  • VOLTAGE :24/48/90/110/180VDC

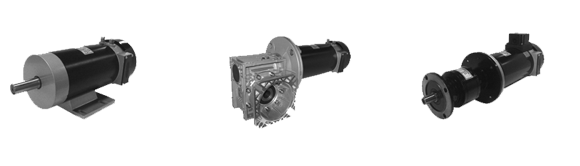

D142 Series

  • Power :1500 WATTS TO 2240 WATTS
  • Speeds :1000 RPM TO 3000 RPM
  • WORM GEARED :10 RPM TO 300 RPM
  • PLANETARYGEARED :10 RPM TO 400RPM
  • VOLTAGE :24/48/90/110/180VDC

DC Drive Model TDR - 72

  • Front Panel Mouting –Plastic Encloser
  • Supply - Single Phase 220VAC
  • For 0.25 Hp To 0.5 Hp Pmdc Motor

DC Drive Model TDR - 96

  • Front Panel mounting type - MS Enclosure.
  • Supply : Single Phase 220 VAC.
  • For 1/8 HP to 1 HP PMDC Motors.
  • Remote On/Off facility.
  • Min/Max Speed settings & Fuses at Back.
  • Size : (H) 96 mm (W) 96 mm (D) 150 mm.

DC Drive Model PMD - 2

  • Wall mounting type - M.S Enclosure.
  • Supply : Three Phase - 220 VAC.
  • For 1/8 HP to 1 HP PMDC Motors only.
  • Remote On/Off facility.
  • Size : (H) 150 mm (W) 115 mm (D) 70 mm

DC Drive Model PMD - 1

  • Base plate mounting type: Module.
  • Supply : Single Phase - 220 VAC.
  • For 1/8 HP to 1 HP PMDC Motors only.
  • Remote On/Off facility.
  • Size : (H) 150 mm (W) 115 mm (D) 70 mm.

DC Drive Model SPM - 1

  • Base plate mounting type: Module.
  • Supply: Single Phase - 220 VAC.
  • For ½ HP to 3 HP for Shunt / PMDC motors.
  • Remote On/Off facility.
  • Isolated Trip contacts.
  • Size: (H) 230 mm (W) 180 mm (D) 90 mm.

DC Drive Model SPM - 2

  • Base plate mounting type: Module.
  • Supply : Two Phase - 440 VAC.
  • For 1HP to 7.5 HP DC motor.
  • Remote On/Off facility.
  • Tacho Feedback provision.
  • Size: (H) 230 mm (W) 220 mm (D) 105 mm.

DC Drive Model TDR - 100

  • Base plate mounting type: Module.
  • Supply : Three Phase - 220 VAC.
  • For 5 HP to 25 HP DC motors
  • In built 'Phase Fail' & 'Phase Reverse' protection.
  • In built 'Over Voltage & 'Tacho Fail' protection.
  • Size : (H) 390 mm (W) 250 mm (D) 200 mm

DC Drive Model TDR - 192 (D)

  • Front Panel Mounting Type - M.S. Enclosure.
  • Supply : Single Phase - 220 VAC.
  • For 1/8 HP to 1 HP for PMDC/motors.
  • Remote On/Off facility With Digital Speed indicator.
  • Size : (H) 96 mm (W) 192 mm (D) 150 mm.

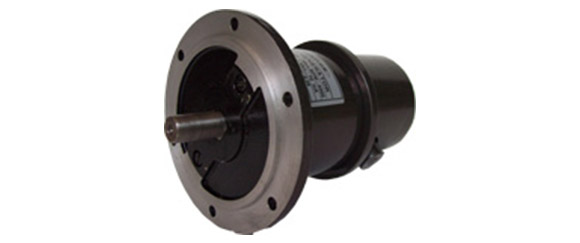

Tacho Generators

  • 10 V / 100 RPM, 20 V / 1000 RPM, 50 V / 1000 RPM.
  • High Quality Magnets.
  • Low Ripples, High Linearity.
  • Speed Range upto 8000 RPM.
  • Voltage Range 0.05 V/rpm to 0.2 V/rpm.
  • Current Range upto 250 mAmps.
  • Class F Insulation.
  • Encloser IP 44/IP53.

BLDC MOTORS AND DRIVES

Sensorless Brushless DC Motors

Features:
  • Excellent Energy Efficiency Design
  • Constant Tourqe Across Opertional Speed range(10% To 100% rated speed)
  • Protection for Under/Over voltage,Over current,Polarity Reversal
  • 0-10 vdc for setting ref speed
  • PwmiN For setting ref speed
  • (Optional)Display control for Speed/Current/Voltage

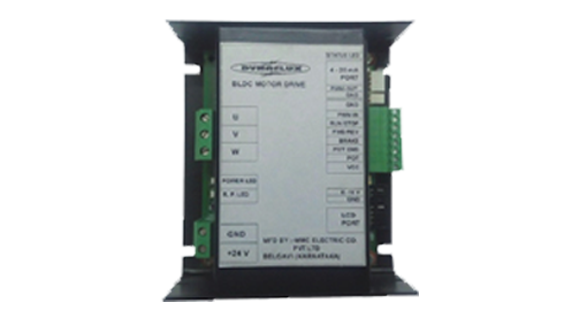

Sensorless Brushless DC Motor Drive

Features:
  • Excellent Energy Efficiency Design
  • Constant Torque Across Operational Speed Range
  • Speed and Current Control Loop for Smooth Operation from Low To High Speeds
  • Protection for Under / Over Voltage, Over Current, Polarity Reversal
  • 4-20 mA Input (Ref Speed) - Optional
  • 0-10 Vdc for Setting Ref Speed
  • Pwm In for Setting Ref Speed and Pwm out for Speed Readout
